88. H(curl) - AMG

We present the amg from Reitzinger and Schöberl: An algebraic multigrid method for finite element discretizations with edge elements.

It is based on a surrogate matrix for a weighted \(H(\operatorname{curl})\) norm discretized by lowest order Nedelec elements:

\[ \| u \|_{L_2, \sigma}^2 + \| \operatorname{curl} u \|_{L_2, \nu}^2 \approx \sum_E w_E \, \Big(\int_E u_{\tau} \Big)^2 + \sum_F w_F \, \Big(\int_F \operatorname{curl}_n u \Big)^2 \]

The edge-weights stem from the \(L_{2,\sigma}\) norm. One could take the diagonal of the edge-element mass matrix, or also Schur complements with respect to the edges. The \(\operatorname{curl}\)-semi-norm is represented by the face terms. The weights can be computed by lumping the lowest-order Raviart-Thomas mass matrix.

The smoother is a Hiptmair smoother, where a Gauss-Seidel smoother is combined with another Gauss-Seidel smoother for the potential space.

The key is a coarsening which preserves the de Rham sequence over all levels, such that Hiptmair’s smoother is effective also on coarser levels.

\[\begin{split} \!\!\!\!\!\!\!\!\! \begin{array}{ccccccc} & B_{\operatorname{grad}} & & B_{\operatorname{curl}} & & B_{\operatorname{div}} & \\[-0.5em] V^v & -\!\!\!\longrightarrow & V^e & -\!\!\!-\!\!\!\longrightarrow & V^f & -\!\!\!-\!\!\!\longrightarrow & V^c \\[1em] \;\;\;\;\downarrow \Pi^W & & \;\;\;\;\downarrow \Pi^V & & \;\;\;\;\downarrow \Pi^Q & & \;\;\;\;\downarrow \Pi^S \\[1em] & B_{\operatorname{grad}} & & B_{\operatorname{curl}} & & B_{\operatorname{div}} & \\[-0.5em] V^v_{coarse} & -\!\!\!\longrightarrow & V^e_{coarse} & -\!\!\!-\!\!\!\longrightarrow & V^f_{coarse} & -\!\!\!-\!\!\!\longrightarrow & V^c_{coarse} \end{array} \end{split}\]

The coarsening of edges is derived from coarsening of vertices. \(E_{IJ}\) is a coarse grid edge if and only if \(I \neq J\), and there are fine grid vertices \(i\) and \(j\) s.t.:

\[ I = Ind(i), \quad J = Ind(j), \qquad E_{ij} \mbox{ is a fine grid edge} \]

More recent, robust coarsening strategies are developed in B. Schwarzenbacher: Robust algebraic solvers for electromagnetics, Master’s Thesis

89. H(curl) - AMG in NGSolve

This amg method is implemented as hcurlamg preconditioner in NGSolve.

from netgen.occ import *
from ngsolve import *
from ngsolve.webgui import Draw

coil = Cylinder( Axes( (0,0,-0.4), Z, X), h=0.8,r=0.4) \
    - Cylinder( Axes( (0,0,-0.4), Z, X), h=0.8,r=0.2)
box = Box( (-2,-2,-2), (2,2,2) )

coil.faces.col=(1,0,0)
coil.faces.maxh=0.1
coil.solids.name="coil"
box.faces.col=(0,0,1,0.3)
box.faces.name="outer"
air = box - coil
shape = Glue( [coil,air] )
Draw (shape);

mesh = Mesh(OCCGeometry(shape).GenerateMesh(maxh=0.2)) # .Curve(3)
Draw (mesh);

fes = HCurl(mesh, order=2, nograds=True) # , dirichlet="outer")
print ("ndof=", fes.ndof)
u,v = fes.TnT()

with TaskManager():
    mu = 4*pi*1e-7
    a = BilinearForm(1/mu*curl(u)*curl(v)*dx + 1e-6/mu*u*v*dx \
                     + 1e8*u.Trace()*v.Trace()*ds("outer"))
    # pre = preconditioners.HCurlAMG(a)
    pre = preconditioners.MultiGrid(a, coarsetype="hcurlamg", coarseflags={ "steps" : 5 })
    a.Assemble()
    f = LinearForm( CF((y,-x,0))*v*dx("coil", bonus_intorder=5)).Assemble()

ndof= 212102

WARNING: kwarg 'coarseflags' is an undocumented flags option for class <class 'ngsolve.comp.MultiGridPreconditioner'>, maybe there is a typo?

gfu = GridFunction(fes)
from ngsolve.krylovspace import CGSolver

with TaskManager():

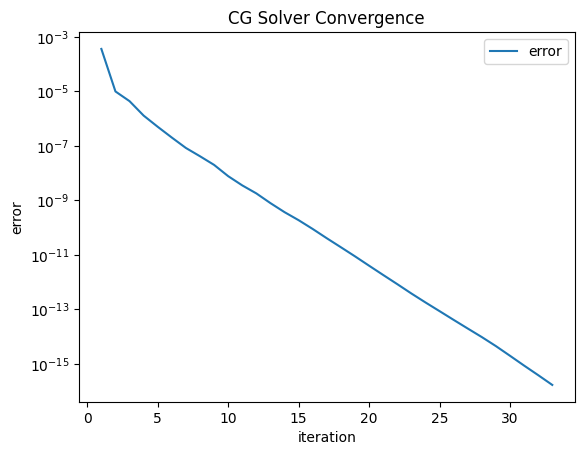

    inv = CGSolver(a.mat, pre.mat, plotrates=True, maxiter=100)
    gfu.vec[:] = inv*f.vec

<Figure size 640x480 with 0 Axes>

ea = { "euler_angles" : (-60, 0, -11) }
clipping = { "clipping" : { "y":1, "z":0, "dist":0.5} }

s = 0.1*2
N = 10
p = [(-s+2*s*i/N,-s+2*s*j/N,-s+2*s*k/N) for i in range(1,N) for j in range(1,N) for k in range(1,N)]

fieldlines = curl(gfu)._BuildFieldLines(mesh, p, num_fieldlines=N**3//5, randomized=True, length=2)

Draw(curl(gfu), mesh,  "X", draw_vol=False, draw_surf=True, objects=[fieldlines], \
     min=0, max=1e-8, autoscale=False, settings={"Objects": {"Surface": False}},
    **ea, **clipping);

help (preconditioners.MultiGrid)
